AGL Fast-Trac 72 Industrial Vinyl Laminator Video

Watch This Video to See All of the AGL Fast-Trac 72 Features that will Increase Your Production!

This video [https://youtu.be/6TGYlYDQoXQ] details one of the most exciting new laminator developments in the wide format graphics finishing arena. This laminator combines the speed and capacity to deliver maximum productivity, reliability and return on investment. For those companies wanting to laminate 600-to-1250-foot rolls of printed vinyl with a cast overlaminate, this machine will deliver the results you are looking for. This large capacity feature along with AGL’s proprietary nip roll design and the industries best heating and nip pressure design, this laminator solves the problems associated with poor laminate adhesion and silvering. This machine can be webbed and operated with a single operator for those companies having a hard time finding additional labor for their finishing departments. Motorized side-lay assembly on the printed vinyl unwind allowing the machine operator to line up the vinyl with the over-laminate with ease and quickness. The side-lay assembly allows for the material to be shifted right or left with the push of a button. Another time saving feature is the manual in-line web cleaning assembly which continuously picks up dust and debris on the printed vinyl creating perfect lamination without imperfections.

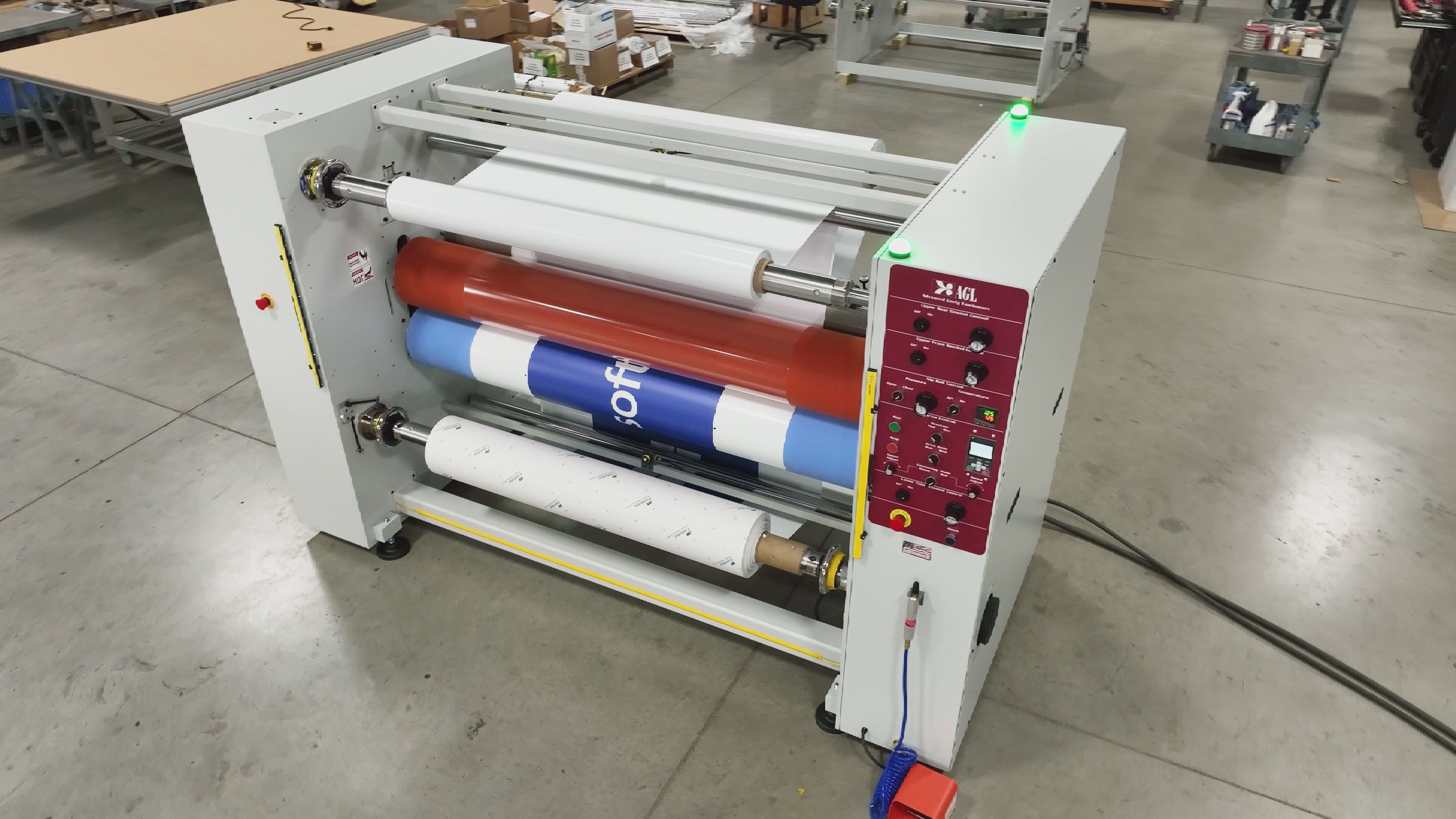

 AGL 72 Fast-Trac Inductrial Vinyl Laminator

The Fast-Trac 72 includes a ten-inch diameter steel, rubber covered nip roll assembly concentrically ground and finished yielding less print distortion and wrinkling. The top nip roll features preset heat assist for warming up pressure sensitive over-laminates resulting in a perfectly smooth output. Other standard features include:

  • Pneumatic control for nip, unwind and rewind pressures for repeatable setup from job to job
  • Two laminating modes for sheet fed and roll-to-roll applications
  • Material working width up to 62 inches
  • Machine speeds of 3 – 100 fpm
  • Rugged 10-inch diameter nip roll with steel wall construction
  • Ergonomic control panel
  • In-Line rotary output trimming knives
  • Dual light end of roll sensor system
  • Four emergency palm stops and two-foot activated e-stops
  • Light curtain safety system
  • Static elimination system

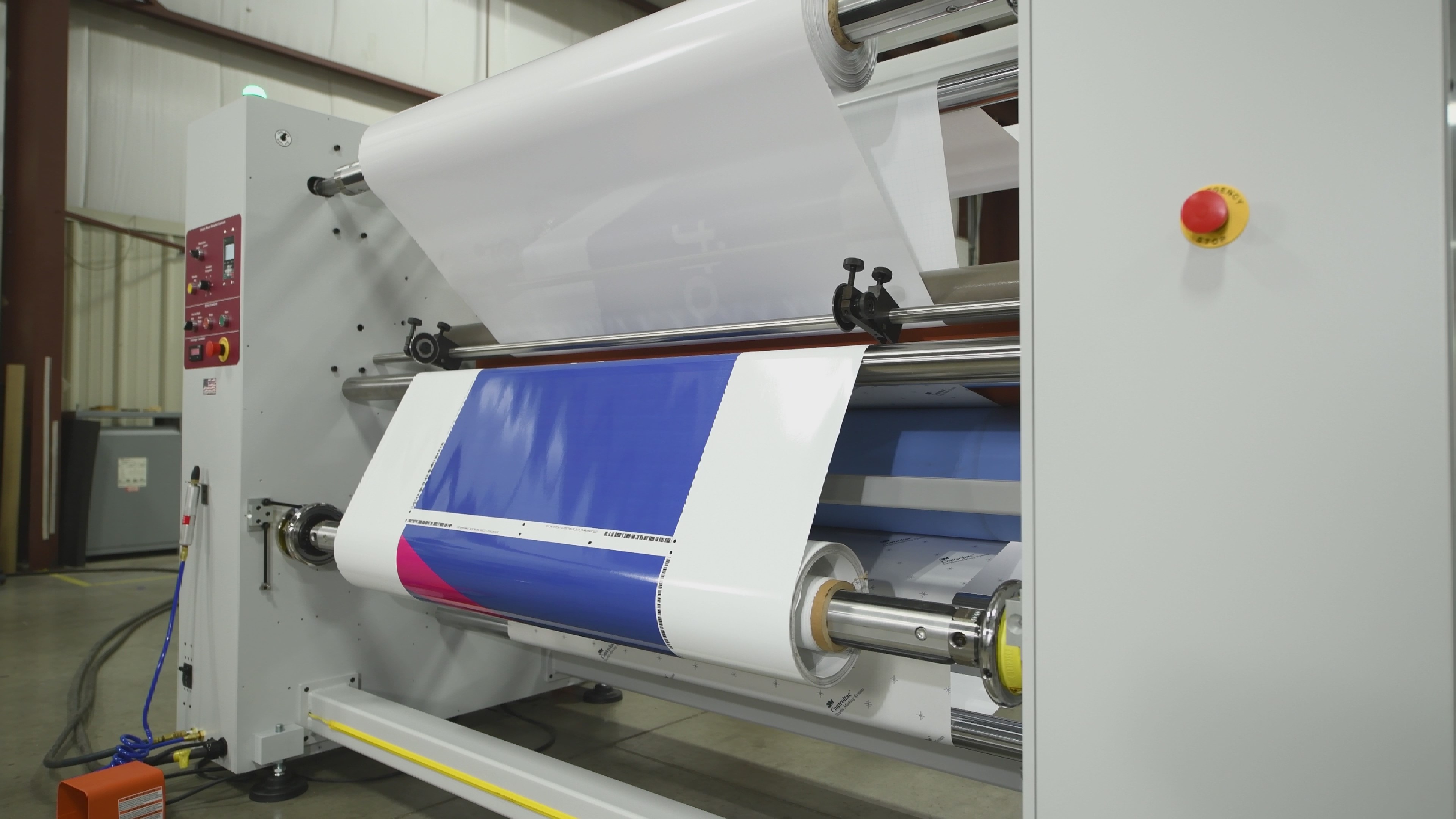

AGL 72 Fast-Trac Inductrial Vinyl Laminator

 High performance laminators from a name you have trusted for over 65 years. Equipment design for the wide format Digital Imaging Market, or for Custom Industrial Applications, we have a solution for you. For more information contact AGL at 1-800-276-2664.
