Maximize Productivity with an AGL 80 Laminator

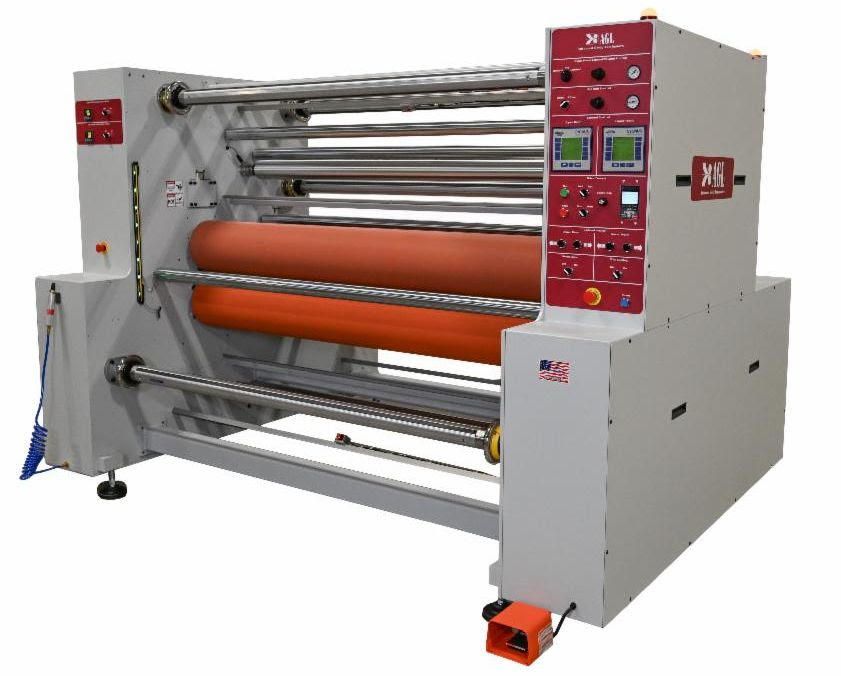

Advanced Greig Laminators, Inc (AGL) located in Deforest, Wisconsin presents its newest innovations with this AGL 80 Industrial Laminator. This machine was designed specifically for the printing industry, combining two materials together to make a very unique product for the wide format graphics market. With laminating speeds of up to 50 feet per minute, this machine truly brings high production lamination to life. Airshafts and safety chucks allow for heavy rolls of material, up to 750 pounds, while lateral side shifting safety chucks give operators the ability to shift supply rolls left or right to keep webs aligned while running. With transducer auto-tension controllers, establishing unwind tension setpoints is as simple as entering a setpoint and letting the laminator do the rest by maintaining your set-point from start to finish. With custom applications like this, AGL continues to engineer ground-breaking designs in new markets using its vast knowledge of industrial laminating principals.

Other features of this machine include:

• AGL’s legendary heated top and bottom heated nip rollers with high temp silicone from ambient to 400°
• Lower rear bi-directional rewind station with a 6" airshaft and safety chucks
• Center rear & upper front release liner windup assembly with pneumatic clutch and safety chucks
• Two unwind assemblies with transducer tension control and motorized sliding safety chucks with +/- 1" adjustment
• Programmable setpoint linear footage counter with auto-stop drive control when setpoint is achieved
• Compressed air filter/dryer
• 3" Air shaft supply and rewind shafts with safety chucks for high weight applications
• Forced air web cooling tube assembly
• Light curtain nip protection assembly
• Variable speed control 0 to 50 fpm
• Laminates up to 73-inch-wide applications
• Ultra Sonic end of roll sensor assemblies
• Rotary edge trimming assemblies to auto-stop the drive motors when supply rolls are low on material
• Two 3-6" core chuck adapters
• Two DC static control assemblies

Quality from a name you have trusted for over 50 years, AGL, Inc. provides you with the peace of mind that you are investing in the most reliable, American made products. From laminators for the Digital Imaging Market, or for Industrial Applications, to film and media supplies and laminating accessories, we have a solution for you. Call us at 608-846-1025, Monday - Friday 8:00am - 4:30pm CST.
